Tensile testing biomaterials can be deceptively finicky. Loads are often small, the curve is rarely linear, and the result can be shaped by handling choices before the sample ever sees a clean pull.
If you want a method-level refresher, see our page on Tensile Testing.
Fixation
To run a tensile test, the first question is not speed or strain rate. It’s whether the specimen will stay put without being damaged. Fixation is where a lot of soft biomaterial tests quietly fall apart.
Compression grips are a common starting point. Spring-loaded grips tend to behave well at low peak loads (roughly under 20 N) because the clamping force is steadier and easier to tune for delicate samples. At higher loads (often above 100 N), screw-driven grips usually make more sense. In the middle range, either can work, and the specimen usually decides which one is less troublesome.
The gripping surface matters too. Tissue paper often works well for delicate tissues. Sandpaper can help with soft tissues that tend to slip. Serrated metal jaws are more suitable for stiffer specimens. In some cases, gluing the sample to tabs and gripping the tabs instead of the specimen itself is the better option.
For soft rope-like tissues, a bending-based setup can sometimes be used to create a tension-style test if the bending forces are negligible relative to the tensile response. That can simplify mounting, especially for awkward specimens, while still allowing axial force and displacement components to be calculated.
If your work involves a wide range of specimen types and force ranges, the UniVert product page is a useful place to see how different tensile setups are supported.
Zero stress and zero strain determination
Many soft biomaterials do not have a clean, obvious zero-load starting point. Their response is often highly non-linear at low strain, so simply calling the first point of contact “zero strain” can introduce error.
In those situations, it is usually more reliable to define a preload at a point where the force-displacement curve has a measurable slope. That gives you a more repeatable reference condition. As a rule of thumb, the preload should stay below about 10% of the expected peak force.
That may seem like a small setup detail, but it can have a real effect on the final stiffness calculation, especially in low-force testing of soft materials.
Strain measurement
Assuming that grip motion is the same as specimen deformation is convenient, but it is rarely ideal. Grip compliance, slippage, and local deformation near the clamps can all distort the result.

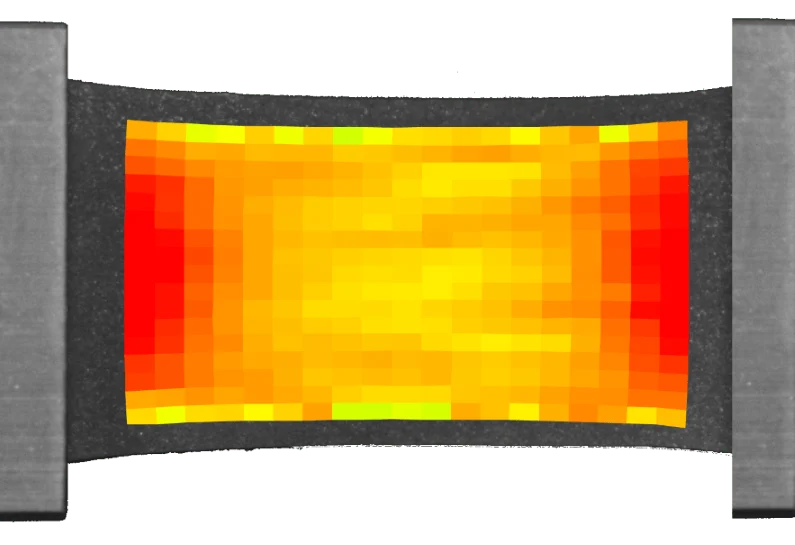

For stiffness measurements on soft materials, non-contact strain measurement is usually the better approach. This is especially true when the sample is highly compliant or when small strain errors would noticeably affect modulus calculations. For simple peak-force tests or experiments with very large strains, grip displacement may still be acceptable, but for careful mechanical characterization, direct strain tracking is better.
This is also where image-based methods become useful beyond pure measurement. Images help with presentations, but they also help explain anomalies during analysis, such as slippage, uneven deformation, or unexpected failure modes.
For readers interested in image-based strain tracking, see our page on Digital Image Correlation (DIC).
Other factors that matter in biomaterials testing
Fixation, preload, and strain measurement are only part of the picture. Real biomaterial testing often involves additional complications such as:
-
non-uniform specimen geometry
-
hydration state
-
temperature control
-
material heterogeneity
-
failure mode interpretation
-
preconditioning
-
strain-rate dependence
-
fatigue effects
You do not need to solve every one of these variables in the same way, but you do need to account for them when you set up the protocol. Soft biomaterials vary more than most people expect, so tensile testing biomaterials works best when the method is built around that reality.
Why practical test design matters
A tensile test is not saved by a good frame if the setup is wrong. Poor gripping, drying, small misalignment, or the wrong strain assumption can overwhelm the measurement and leave you with a curve that looks precise but is not very meaningful.
That is one reason practical testing guidance remains valuable. Many issues in tensile testing biomaterials are not abstract theory problems. They are setup problems, protocol problems, or interpretation problems. Solving those early usually improves the quality of the data more than adding complexity later.
If you would like help designing a tensile testing protocol for biomaterials, contact the CellScale applications team.
Final takeaway
Most good tensile testing biomaterials results come from basic decisions made carefully: secure mounting, a preload that is repeatable, and strain measurement that reflects what the gauge region is doing. Those steps can feel minor, but they usually decide whether the dataset is interpretable.
The reason this kind of guidance stays relevant is simple. Soft materials still slip, still dehydrate, still deform near grips, and still punish sloppy assumptions. The tools improve, but the setup fundamentals stay the same.
