Eclipse
Ultra-low force measurement for precise materials testing

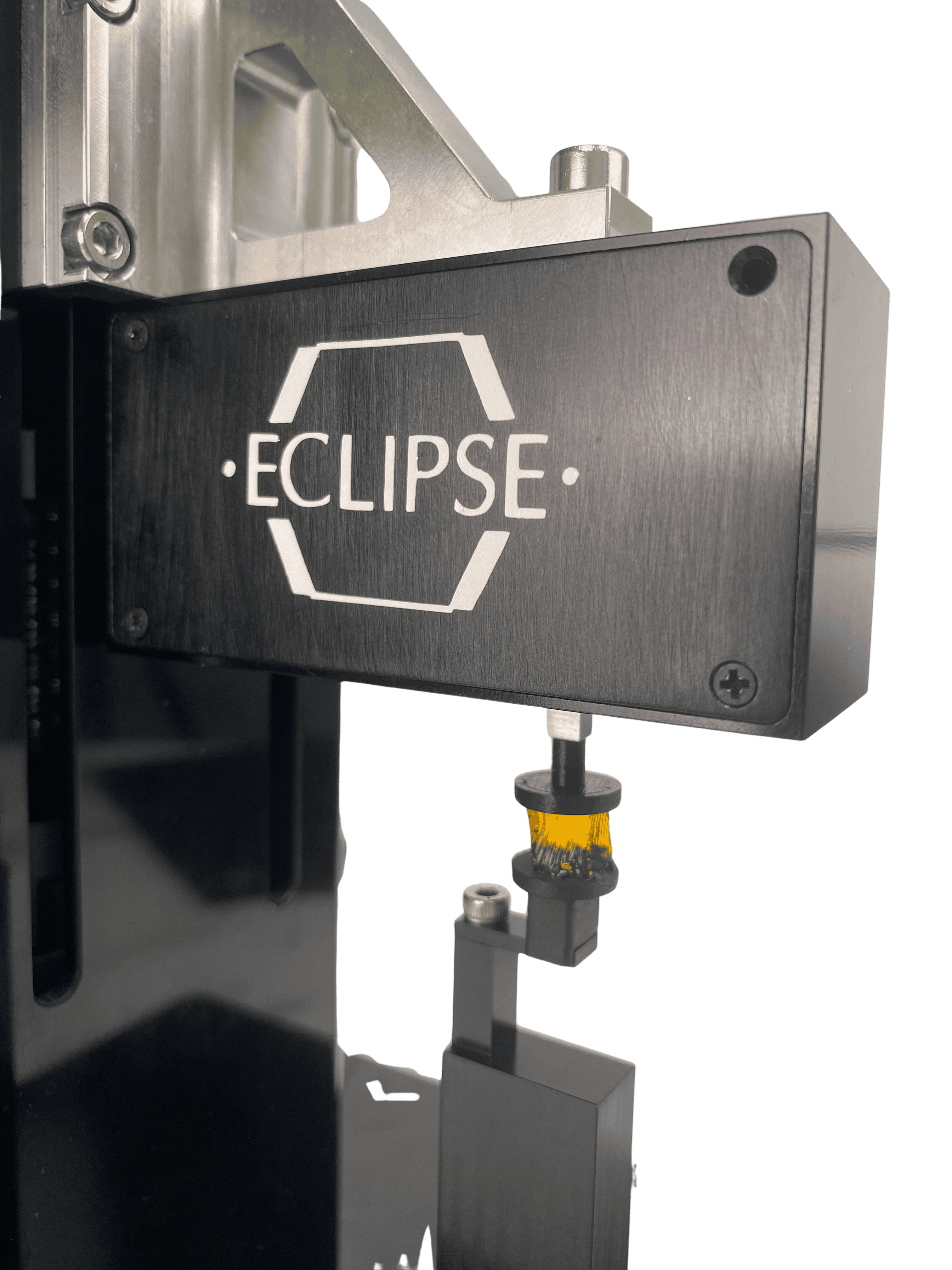

Discover the pinnacle of low-force measurements. The Eclipse force sensor delivers unmatched precision and accuracy for bench-top uniaxial testing, detecting forces as small as 40 µN. Built to last, this patent-pending technology features 10,000% overload protection for exceptional reliability. Paired with the UniVert system and testing platform, this is the ultimate low-force materials testing solution.
It is a robust, precise and user-friendly option for soft materials testing, perfect for tension and compression testing for hard to handle samples. The Eclipse has a compact design that offers quick setup, at easy to attach fixtures that will have you testing your samples within minutes.
Applications Include
- Hydrogels
- Fibers
- BioInks
- 3D-bioprints
- Tissues
- Soft polymers
- Organoids
- Meshes
- Films
TECHNICAL INFO
| Eclipse | |
| Capacity (mN) | 20, 50, 100, 200, 500, 1000, 2000 |
| Safe Overload (% of R.O.) | 10,000 |
| Hysteresis (% of R.O.) | ±0.08 |
| Non-linearity (% of R.O.) | ±0.1 |
| Non-repeatability (% of R.O.) | ±0.1 |
| Temp. shift zero (% of R.O./ºC) | ±0.02 |
R.O. (Rated Output)

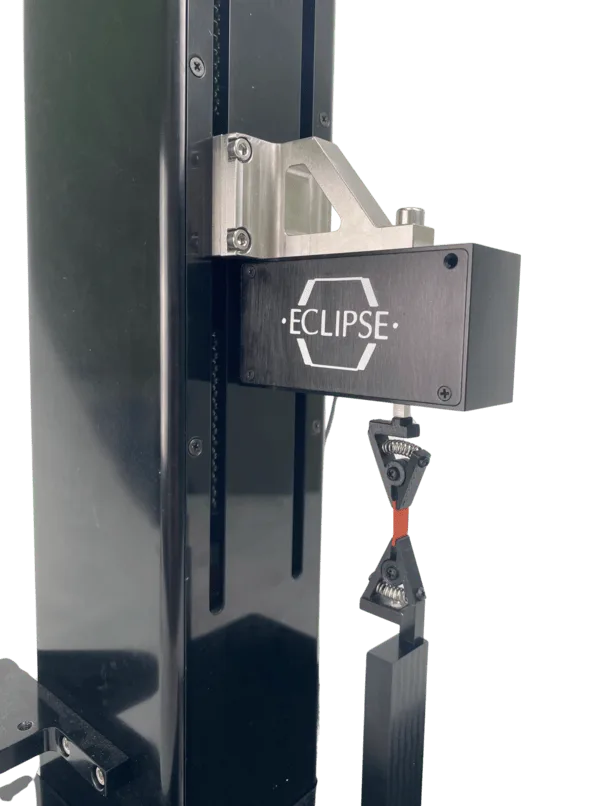

Fixtures and mounting

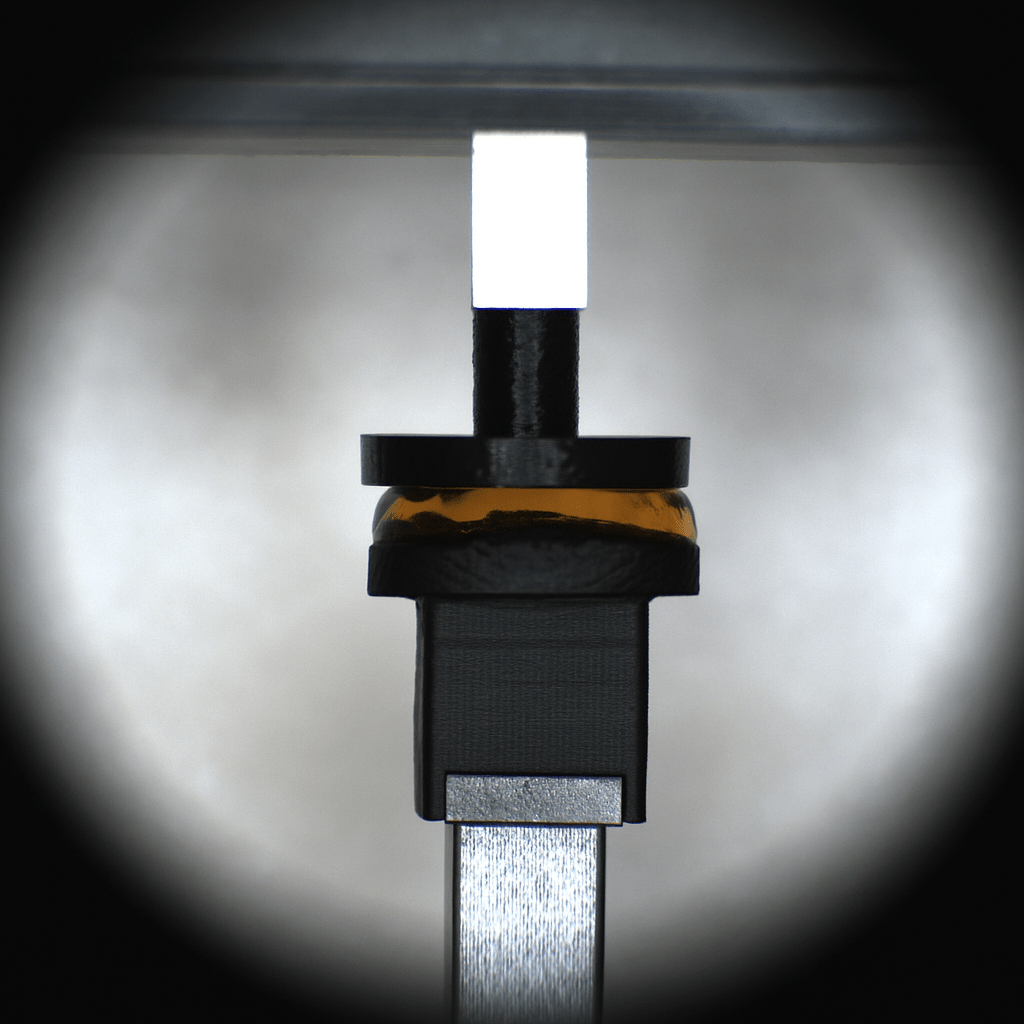

Compression Specimen: 4mm gelatin (700 Pa) Peak Force: 45mN

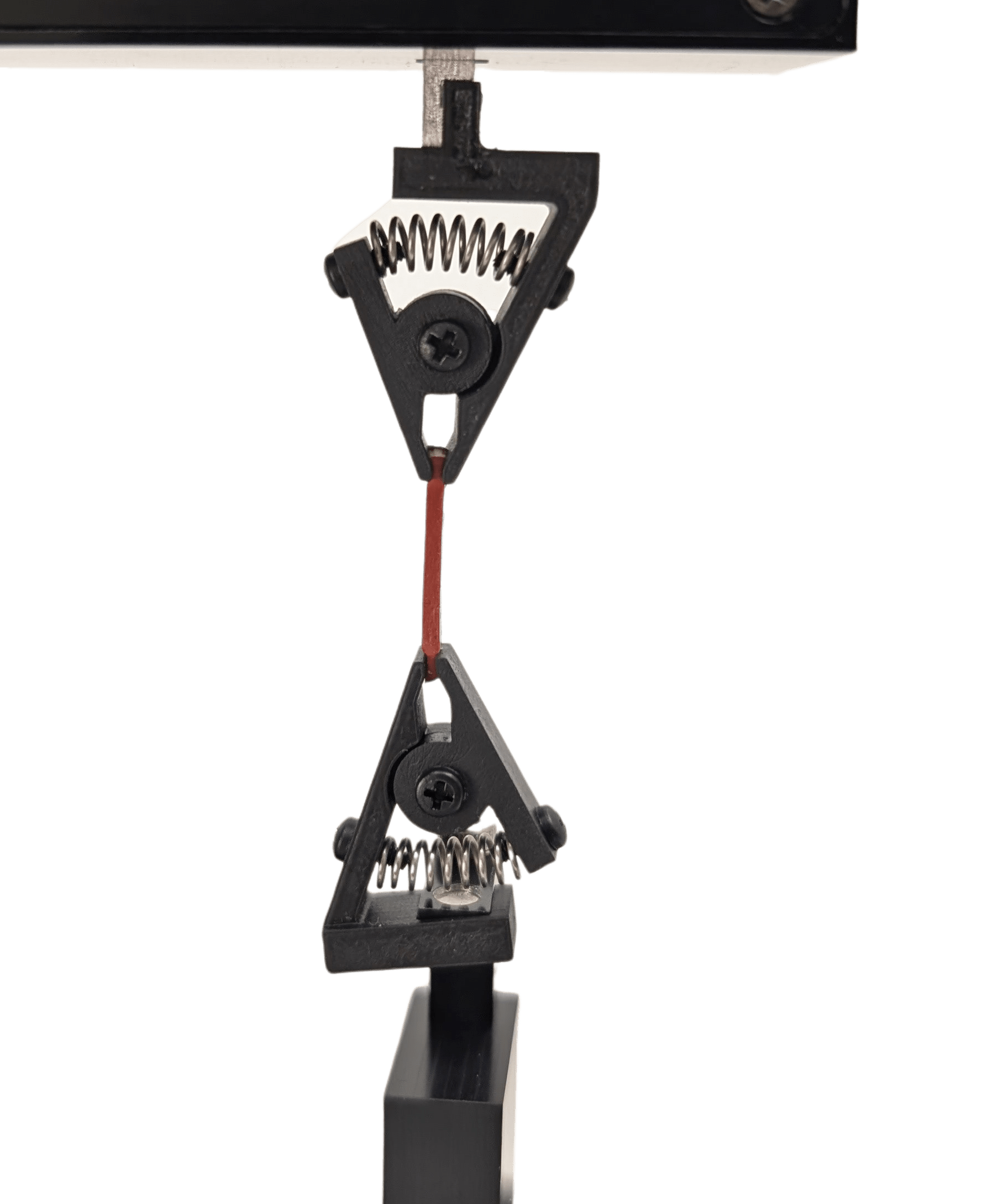

Tension Specimen
DOWNLOADS
Eclipse Documentation
If you would like help with updating your device software, please contact the CellScale team for free support.
